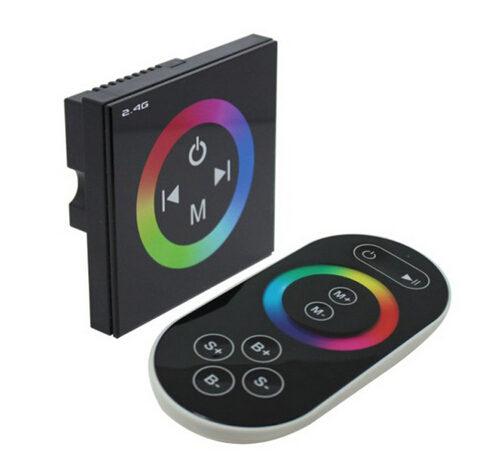

 Name: DMX Touch Panel Decoder
 NO.:
Summarization
DMX Touch panel decoder with 2.4G remote is a new high-end led controller which is newly researched and developed by our company. It adopts glass panel design, beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. The controller has 2.4G remote and DMX signal control interface, furthermore, it has colorful built-in mode option and color wheel, it is a functional and high-end touch controller. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, panel lights etc., it has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, strobe flash and other effects of change.

Feacture:
Working temperature: -20-60≧
Power supply voltage: DC 12゛24V
Output: 3 channel
Connect way: common anode
External dimension: L86ΧW86ΧH41.8mm
Packing size: L115ΧW110ΧH56mm
Net weight: 227g
Gross weight: 291g
Static power consumption: <1W
Output current: < 4A (each channel)
Output power: 12V: < 144W, 24V: < 288W
Remote control
1. Working temperature: -20-60≧
2. Power supply mode: AAA*3
3. Power supply voltage: 1.5V*3
4. Transmitting frequency: 2.4 ghz
5. Standby power consumption: 0.015mW
6. Standby current: 60uA
7. Working current: 200uA
8. Transmitting current: 10mA
9. Remote distance: about 30 meters
10. Standby time: six month
11. Weight: 94g

Package included:

1 x DMX Touch Panel Decoder
1 X 2.4G Remote Controller
