Monitor: Camera quality inspecting;nspect and repair of monitor system circuit...... etc.
Function:

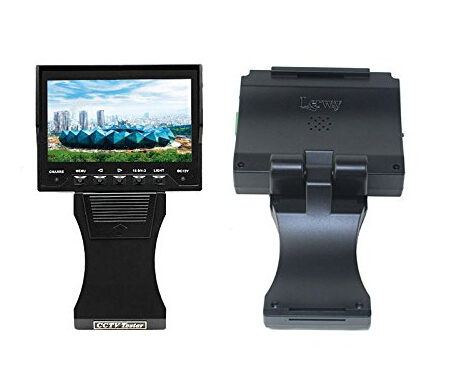

Portable product: Portable product is able to use in any place and any
time. It is easy to hold and do not need complicated equipment that
hinders the inspecting and repairing
Monitor: 4.3 inch high image resolution monitor enable to show clear image that fits any place to use.
Long work time: Equips with Lithium battery of high capability. Each 6hours recharge durables 5-8 working hours
Humanized design of appearance: Hand-hold design for professionals. Easy
operation without taking off gloves speeds your works. Clasp ring at
bottom fits to all chains and use in all environments
Support DC power for camera: It's convenient for user to check camera
condition and correct direction of camera, so to make installation and
repairing easier
The net line test function: Can carry out can see to turn to show that
the net line conjunction circumstance and the net lines link the
sequence.
Specification:
Display: 4.3"TFT Color LCD
Number of Pixel: 480RGB (H) X272(V)
Video In: Video In × 1 (BNC connector)
Export:
7 kinds of color bar signal output
DC power out × 1 (Support CCD camera of power source/ Max electric currency 500mA)
System Format: NTSC / PAL
Language: Support English/Chinese
Battery Specification: Built-in rechargeable Lithium battery: 3.7V 2600mA/h
Power Specification: External power DC 5V 1.0A Adapter
Dimension/ Weight: 178mm (L) x110mm (W) x 40mm (H) / 350g
Package Included:
1 X Camera tester
1 X Charger
1 X CCD power cord DC12V OUT PUT & AV cable (2 in 1)
1 X RJ45 adaptor
1 X User manual
