Our Proudct |
 |
|
|
|
|
|
![]() |
| ¡¡Name: |
Multimeter YH-351 |
| ¡¡NO.: |
|

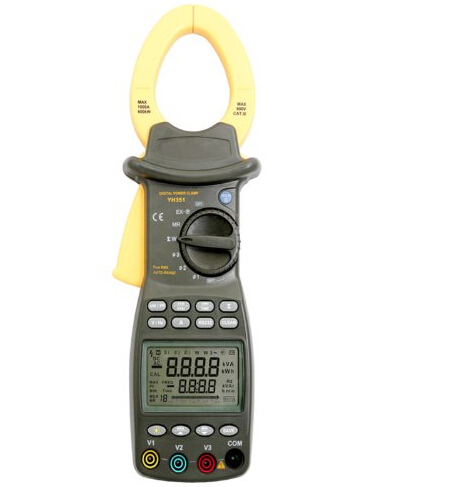

New Three Phase Digital Power Clamp Meter YH-351
Features:
1. Power measurement of 3-phase 3-wire, 3-phase 4-wire, single-phase mode
2. V, A, W, VA, VAR, KWh, PF, Hz measurement
3. Double display two parameters on each menu and store 28 groups of measurement parameter
4. Measure total power value and five power parameters of each phase in 3-phase measurement mode respectively
5. Auto range and TRMS display
6. With PC RS232 interface and windows graphics software
7. Display measurement time and select tested signal be power supply for
the clamp at one time, the instrument can measurement for long time
8. Large LCD display, multifunctional button control
Specifications:
Max conductor size : §¶50mm
AC current(A): 40/100/400/1000A¡À2%
AC voltage(V): 100/300/600V¡À1.2%
Active power(kW): 4/10/40/100/600kW¡À3.0%
Apparent power(kVA): 4/10/40/100/600kVA¡À3.0%
Power factor(PF): 0.3cap to 0.3ind¡À0.02%
Reactive power(KVAR): 4/10/40/100/600kVAR¡À4.0%
Active energy(kWh): 10/100/1000/10000kWh¡À3.0%
Frequency(Hz): 20 ~ 1000Hz 0.5%
Display: 4 digits LCD 9999
Power supply: 4 x 1.5V AA
Operating temperature: 0¡ãC ~ 40¡ãC
Dimensions: 300mm x 103mm x 51mm
Weight: Approx. 500g
Package content:
1PCS YH New Three Phase Digital Power Clamp Meter YH-351 |
|
