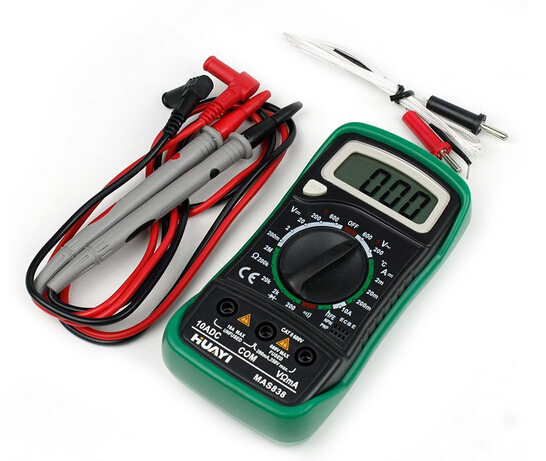

 Name: Digital Multimeter MAS838

It is provided with a LCD display of 15 mm height for clear reading. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit, making it a superior and handy instrument. It can be used to measure DC and AC voltage, DC current, resistance, diodes, transistors, temperature and for in-circuit continuity test.

1. Display: 3 1/2 digit, 7 segment, 15mm high LCD
2. Function and range switch: This switch is used to select functions and desired ranges as well as to turn on/off the meter.
3. Hold function: When this button is pushed, the display will keep the last reading and " " symbol will appear on the LCD until pushing it again.
4. "10A" jack: Plug in connector for red test lead for 10A measurement
5. "COM" jack: Plug in connector for black (negative) test lead.
6. V mA jack: Plug in connector for red (positive) test lead for voltage, resistance and current (except 10A) measurements
7. Maximum voltage between terminals and earth ground: CATÅ600V
8. Fuse protection: F1 250mA/250V F2 10A/ 250V
9. Power: 9V battery, NEDA 1604 or 6F22
10. Display: 1999
11. Overrange Indication: "1"
12. Polarity indication: "-" for negative polarity
13. Operating Environment: 0 to 40≧
14. Storage temperature: -10≧ to 50≧
15. Low battery indication: "- + "appears on the display
16. Size: 138mm〜69mm〜31mm
17. Weight: 170g

Package included:
1 x digital multimeter
1 x Instruction manual
1 Pair Probe: one pair
1 x 9 V battery NEDA 1604 6F22 (in the multimeter)
1 x K thermocouple sensor (MAS838 only)
