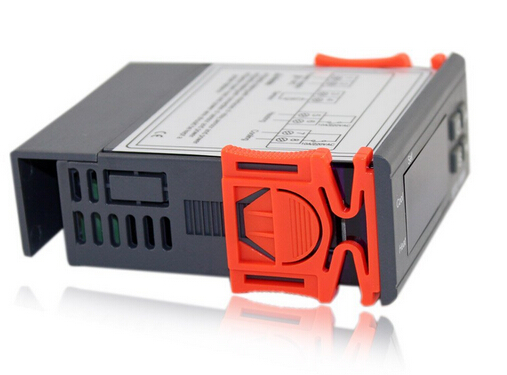

¡¡Name: Thermostat Stc-1000 12V
¡¡NO.:
Detailed Product Description
Measure range:-50~+99oC
Mounting size:71*29mm
Auto switch between refrigerating and heating
Retrun difference value
All-purpose Temperature Controller STC-1000:

Features:
Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error.

Specification and Size:
1.Front panel size75(L)¡Á34.5(W)mm;
2.Mounting size:71(L)¡Á29(W)mm;
3.Product size75(L)¡Á34.5(W)¡Á85(D)mm;
4.sensor length2minclude the probe.

Technical Parameters:
1. Temperature measuring range: -50~99oC;
2. Resolution: 0.1oC; 3. Accuracy: ¡À1oC (-50~70oC);
4. Sensor error delay: 1 minute
5. Power supply: 12VAC¡À10%, 50/60Hz;
6. Power consumption: ¡Ü3W;
7. Sensor: NTC sensor (1PC);
8. Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;
9. Ambient temperature: 0~60oC;
10.Storage temperature: -30~75oC;
11.Relative humidity: 20%~85% (No condensate).

Package Content:
1PCS STC-1000 Temperature controller 12v
